M6 Product Functions
M6+ Product Functions
M6+ Pro Functions

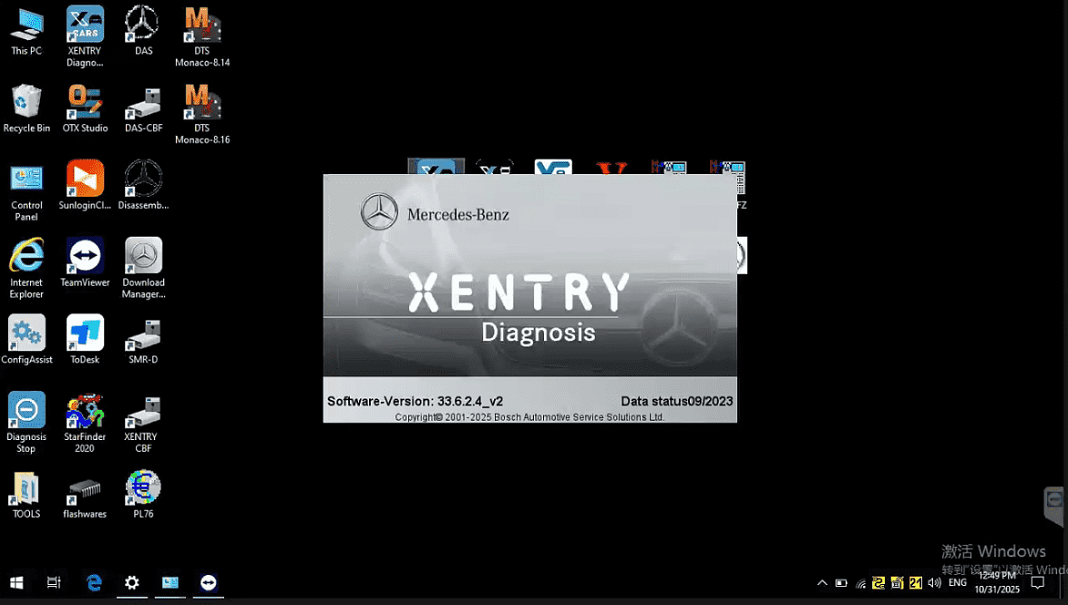

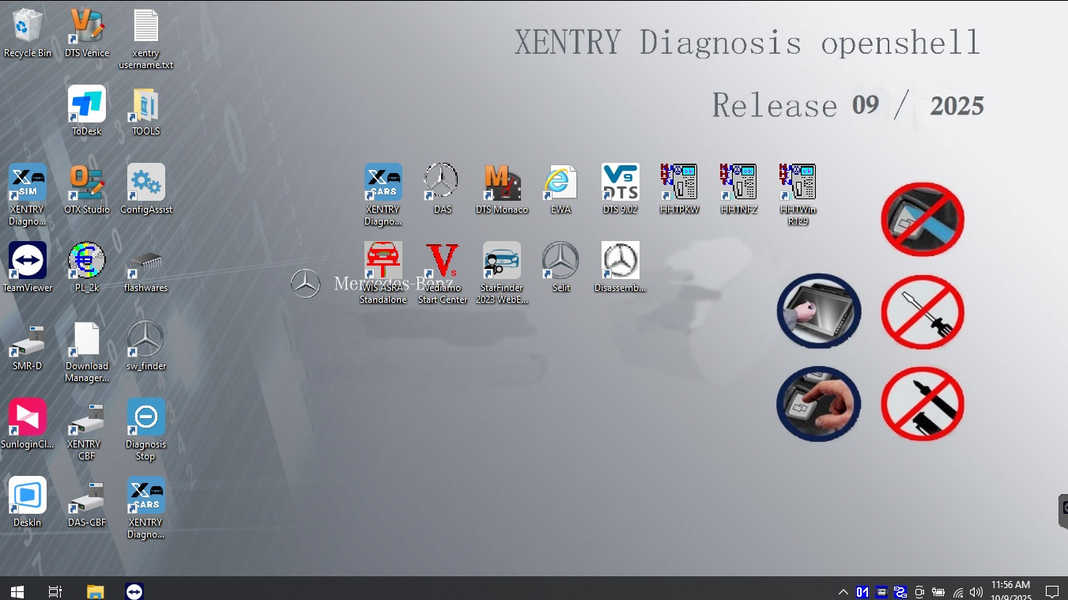

XENTRY
√
√
√
XENTRY Truck
√
√
√
DTS
√
√
√
VIDEO
√
√
√
MB DOIP
√
√
√
MB WIFI
√
√
√
PC USB
×
√
√
PC RJ45
√
×
√
Vehicle Voltage Real-time Display
×
×
√
BWM Aicoder
×
√
√
BWM E-SYS
×
√
√
BWM APP
×
√
√
Other DOIP
×
√
√
M6+ Pro, M6+ and M6 product function comparison chart
Passenger Car Supported List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)
Van Supported List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)
Truck Supported List:
Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series
Unimog Supported List:
U20, UGN, UHN
Bus Supported List:
TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408,
Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES
Super Sports Car Supported List:
SLR(199)
Option 1:
Package:
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
Option 2:
Package :
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1PC x 512G SSD (Benz Dealer Diagnostic Software)
Option 3:
Package :
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x Second Hand Laptop Lenovo X230 Laptop (All software activated. All system ready to use)
Second Hand Laptop Lenovo X230 Specification:
Brand:Lenovo
Condition:Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-3320M CPU
Memory:8GB
Processor Speed:2.6GHz
Hard Disk: 512G SSD
Option 4:
Package :
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x Second Hand Laptop Lenovo T450 Laptop (All software activated. All system ready to use)
Second Hand Laptop Lenovo T450 i5-5200U 8GB Memory
Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/ Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB
Hard Disk: 512G SSD
M6+ Pro Connection Instructions
M6+ PRO Mercedes-Benz and BMW configuration
1. Plug the M6+PRO into the power supply or connect the OBD to the test vehicle, and plug in the USB/LAN cable of the M6+PRO.
2. Turn on the computer and plug in the computer USB/LAN cable.
3. Open the computer network configuration interface and find the Realtek USB FE Family Controller network/the network adapter that comes with the PC.
4. Click “Properties”--TCP/IPV4, and set the IP address as shown in the figure below.
5. Click “Advanced”, and add a group of network IP addresses as shown in the figure below.
6. Click “OK”. After the configuration is successful, the display is as follows.
7.For the same computer, if you replace a new M6+PRO, you need to reset the IP address. After the setting is completed, the computer is successfully bound to the M6+PRO and there is no need to set the IP address again for wired and wireless Internet access. (Use LAN port connection mode, no need to re-set IP when changing devices).
8.You can test Mercedes-Benz normally. Please connect the diagnostic cable with SUPER MB PRO logo.
9. BMW wireless BMWAiCode configuration(only for F+G chassis)
Connect to the M6+PRO -***, password:123456789, wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. The computer-side BMWAiCoder configuration is as follows:
10. BMW wired BMWAiCode configuration(only for F+G chassis)
Connect the USB/LAN cable, press and hold the M6+PRO switch button for 3S, and the M6+PRO host wired indicator light will flash. The computer-side BMWAiCoder configuration is as follows:
11. BMW wired and wireless E-Sys configuration(only for F+G chassis)
Connect to the M6+PRO -*** wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. On the computer side, select the following for direct connection. Wired is similar, no setup required.
12. BMW wired ISTA configuration(only for F+G chassis)
Connect the USB cable, press and hold the M6+PRO switch button for 3S, and the M6+PRO host wired indicator light will flash. The computer ISTA configuration is as follows:
13. BMW Wireless ISTA configuration(only for F+G chassis)
Connect to the M6+PRO -*** wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. The computer side is selected as follows:
14.The mobile phone BWM APP adopts wireless connection. (only for F+G chassis)
Connect to the M6+PRO -***, password: 123456789, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash.
15. Supported BMW models and years.
Model Year |
2019 |
2018 |
2017 |
2016 |
2015 |
2014 |
2013 |
2012 |
2011 |
2010 |
2009 |
X1 |
√ |
√ |
√ |
√ |
|
|
|
|
|
|
|
X3 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
× |
|
|
|
X4 |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
|
|
|
X5 |
√ |
√ |
√ |
√ |
√ |
√ |
× |
|
|
|
|
X6 |
√ |
√ |
√ |
√ |
√ |
× |
|
|
|
|
|
1 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
× |
|
|
2 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
|
3 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
× |
|
|
|
4 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
|
|
|
5 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
× |
6 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
× |
|
|
7 Series |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
