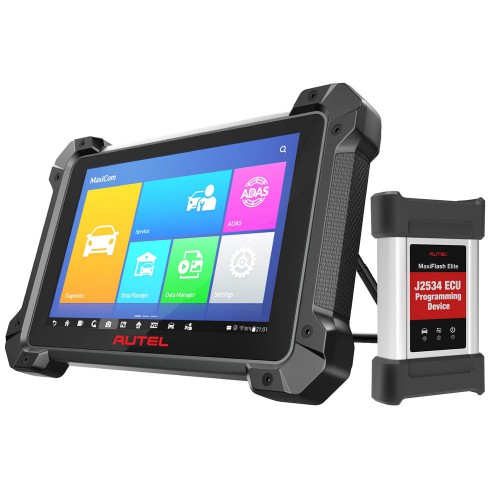

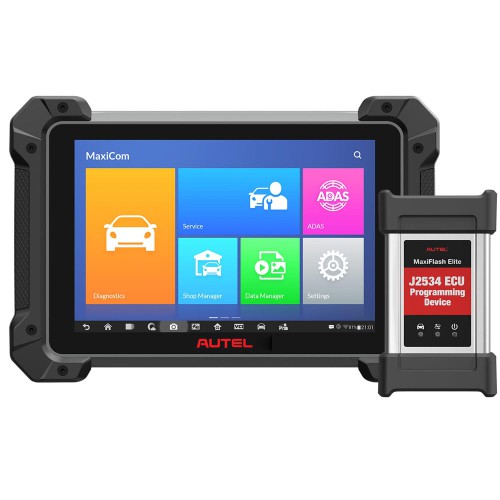

Autel MaxiCOM MK908P Pro Full System Diagnostic Tool with J2534 ECU Programming

Autel MaxiCOM MK908P Pro Full System Diagnostic Tool with J2534 ECU Programming

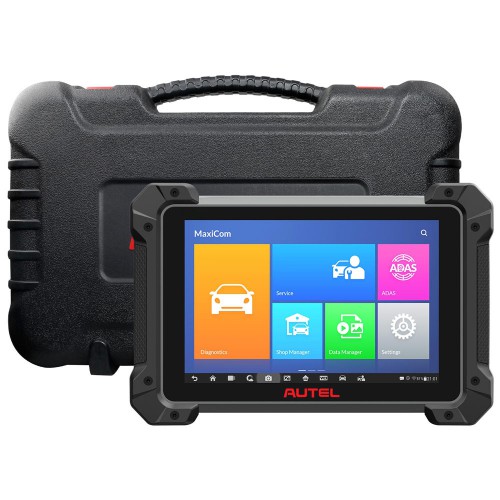

The MaxiCOM MK908P Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful A7 quad-core 1.30GHz processor, and a 10.1-inch capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiCOM organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Top 10 Reasons to Get Autel MaxiCOM MK908P:

1. Original Autel Brand Tool, High Quality and Powerful Functions
2. One Year Free Update Online. After One Year, MK908P Software Subscription Cost $799/year.
3. Support ECU Coding and J2534 ECU Programming Functions
4. High-End Automotive Diagnostic Tool, Comprehensive OE-Level Diagnostics, Easily, Quickly and Efficiently
5. ECU PROGRAMMING: The diagnostic tool comes with a free J2534 ECU programming device that helps Benz and BMW users replace the existing software/firmware in the ECU, program new ECUs and fix software-controlled driving performance and emission issues.
6. VEHICLE COVERAGE: The software of MK908P has a wide range of compatibility and can be used to diagnose vehicles from over 80 brands in the US, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.
7. ADVANCED HARDWARE: MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1" 1920*1200 screen upgraded from 9.7" 1024*769, and 15000mAh battery capacity increased by 4000mAh.
8. BI-DIRECTIONAL CONTROL: The diagnostic tool supports bi-direction control to check the vehicle operating conditions. The bi-directional control of the ECM in Component Test enables the MK908P to transmit control commands to operate the vehicle systems.
9. ADDITIONAL SERVICE: The automotive scanner is designed to serve users with a rich array of easy-to-use functions and features. The MaxiFix provides you with an online troubleshooter database, and Remote Desk allows you to get help from others via TeamViewer software.
10. Multiple Languages: English, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian

Abundant User-Friendly Add-On Features:

1. MaxiFix: vast database of repair and diagnostic tips along with proven filed fixes.
2. Fast Data Transfer (VCI): dual band 802.11n Wi-Fi technology and long range Blue-tooth for ultra-fast Wireless Communication.
3. AutoVin Technology: latest AutoVIN technology with advanced Auto-Scan functions to identify CAN-Enabled vehicles, in one touch.
4. Prints out recorded data anytime and anywhere with Wi-Fi technology
5. One-Stop Solution for All Pro-level Needs
6. Online ECU Coding for software modifications to a vehicle, allowing the use of functions not available in the car when it left the factory.
7. Access to All OE-level systems and subsystems (ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.).
8. Work for Benz Online Programming (support new chassis e.g. 204, 212).
9. Complete TPMS Features (sensor program, activation etc.); Compatible with MaxiScope & MaxiVideo; WiFi / Cable / Bluetooth Connection Support.
10. Work for BMW F Chassis Coding Backup, BMW F Chassis Coding & Individualisation (need OTG adapter and F chassis connector), BMW E Chassis Coding Backup, BMW E Chassis Coding Backup & Individualisation, BMW Online Programming (support most models including part of G chassis).

Autel MaxiCOM MK908 Functions List:

1. J2534 ECU Programming:

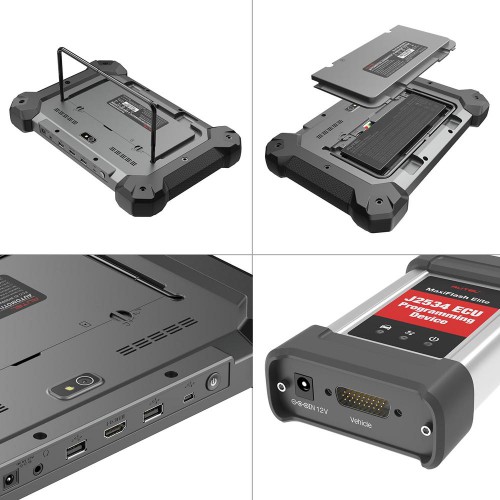

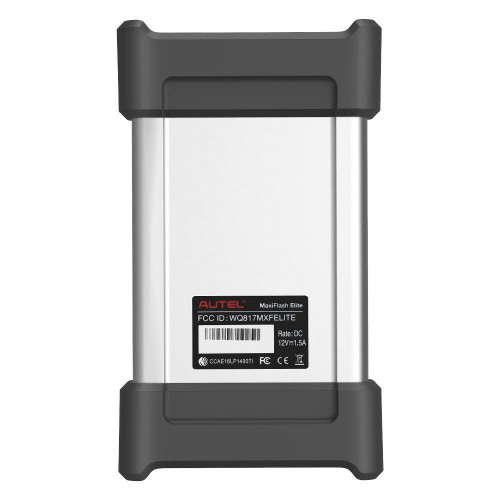

The diagnostic tool comes with a J2534 ECU programming tool (also used as a VCI box) that is a SAE J2534-1 & -2 compliant pass thru reprogramming interface device. Using the updated OEM software, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues. It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with or without a physical connection.

2. There are 3 indicators on the J2534 ECU programming device:
1) Vehicle LED – Flashes green when communicating with the vehicle's system
2) Connection LED –  Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection
3) Power LED – Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure

3. System Diagnostics
Simply accessing the diagnostic modes via AutoVin or Control Unit, and you' re able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.
1) ECU Information – provides the retrieved ECU information in detail.
2) Read Codes – displays detailed information of DTC records retrieved from the vehicle control module.
3) Erase Codes – erases DTC records and other data from the ECM.
4) Live Data – retrieves and displays live data and parameters from the vehicle' s ECU.
5) Active Test – provides specific subsystem and component tests.

4. Accesses the Special Functions
The diagnostic tool is specially designed with the Service section to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. It provides component adaptation or variant coding functions for custom configurations and also allows you to reprogram adaptive values for certain components after making repairs. The most commonly performed service functions include:

1) Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.
2) EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
3) SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
4) DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
5) TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle' s ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
6) IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.

5. Deeper Diagnoses/Add-on Features

MaxiSys MK908P II works in combination with the diagnostic tools to your greatest advantage:

    The MaxiScope MP408, a PC based automotive oscilloscope, giving you an insight to the inner workings of a vehicle’s electronic circuits;
    The MaxiVideo MV105/108, digital inspection cameras, allowing you to examine difficult-to-reach areas normally hidden from sight.

6. Remote & Instant Support

    Data Logging to send help requests and to get direct services with the scan tool;
    FAQ Database to get references for questions asked and answered with this scanner;
    Training Channels to play videos about product usage and vehicle diagnoses stored in the diagnostic tool.
    Remote Desk: With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel' s support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.
    MaxiFix: This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.

Autel MK908 Pro II Scanner Specification:

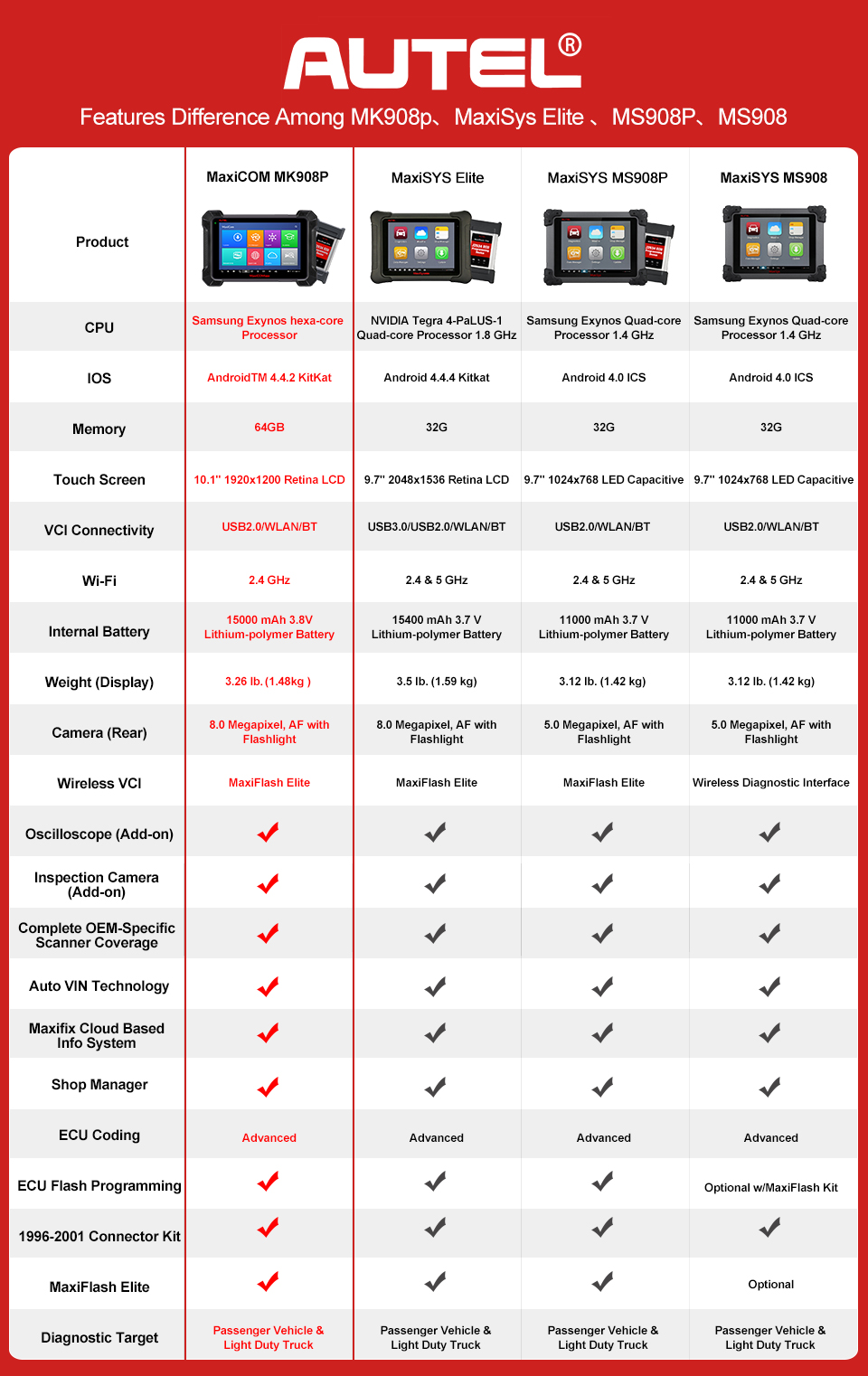

The Differences Between MK908PII and MaxiSys MS908P:

The MK908P II is an upgraded version of MS908P, and the difference between them is that MK908P is equipped with more advanced hardware.

Processor: The MK908P is processed by the powerful Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) while the MS908P is using the Samsung Exynos Quad-Core Processor 1.4GHz.

Operating System: Diagnostic scan tool MK908P features Android 10

Memory: The MK908P is equipped with 2GB RAM & 64GB on-board Memory, but MS908P only has 32GB on-board memory.

Screen Size & Pixel: The Automotive diagnostic scanner MK908P features 101.1 inches LED screen with 1920*1200 resolutions that provides a better user experience than MS908P's 9.7 inches screen with 1024*768 resolutions.

Camera: The camera of MK908P is designed to provide a more detailed images using 8.0 Megapixel, AF with Flashlight.

Battery Capacity: For a tablet diagnostic tool that is equipped with built-in battery, the battery life greatly affects the integrity of the diagnosis and the user experience. Compared to the MS908P, the MK908P extends the usage time by increasing battery capacity by 4000mAh.

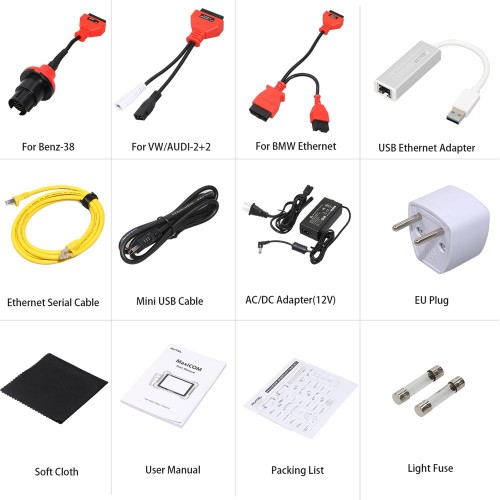

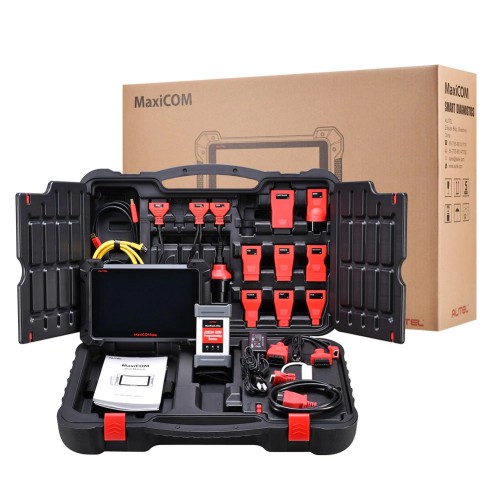

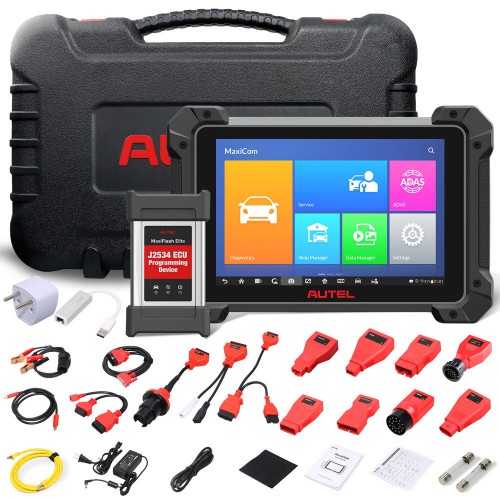

Package List:
1 x Main Unit MK908P II
1 x J2534 Box
1 x Main Cable
1 x Standard 2.0 USB Cable
1 x Mini USB Cable
1 x AC/DC External Power Adapter
1 x Ethernet Serial Cable
1 x Cigarette Lighter
1 x Clipper Cable
2 x Light Fuse
1 x BMW Ethernet Cable (Optional)
1 x USB Ethernet Adapter

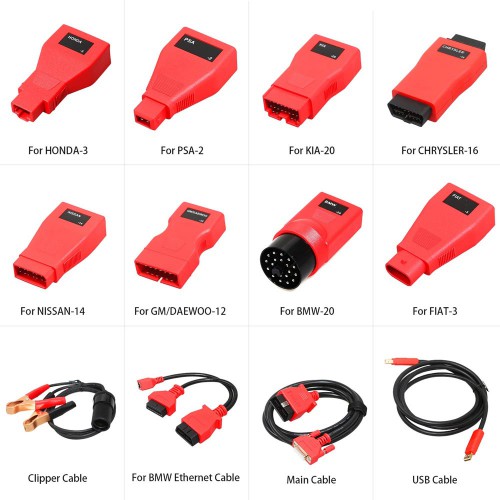

14 x OBDI Adapters (Benz-14; Chrysler-16; BMW-20; Kia-20; Nissan-14; GM/Daewoo-12; Honda-3; Fiat-3; PSA-2 Benz-38; VW/Audi-2+2; Mitsubishi/Hyundai-12+16)
