NEXIQ 3 USB Link + Software Diesel Truck Diagnostic Tool

NEXIQ 3 USB Link + Software Diesel Truck Diagnostic Tool

NEXIQ 3 detroit diesel diagnostic link scanner tools usb-link 3 adapter universal truck diagnosis tools. support the latest protocols (CAN FD, DoIP), and with the compatibility for a wide range of OEM diagnostics software, the USB-Link 3 is our most advanced VCI to date with the performance and technology you can rely on well into the future

NEXIQ 3 Features :
1. Support system: XP and windows 7 (Volvo Hino Perkins Cat Nissan software must be used on xp system, other software can be used on win 7 32bit)
2. It Works As Great As Nexiq.
3. Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more.
4. Reduce reprogramming times with direct USB connection.
5. Mixed fleet capabilities with broad protocol support.
6. Quick access to vehicle data for maintenance or management reports.
7. Quickly attaches to vehicle's diagnostic connector.
8. Easy portability increases flexibility, May be used with desktop PC or laptop.

Notice:
1. It Can Not Be Updated, Otherwise, The Multiplexer Will Be Damaged.
2. For Volvo, Hino, Cat and Nissan software, please install them on Windows XP only, other vehicle software can be installed on Win 7.
3. When you change time of your laptop, Cummins Inline software will get locked, please download the attached fileow-to-unlock-cummins-inline" to solve it.
4.Before install the Nexiq software CD,pls reinstall your computer system first,otherwise the multiplexer will be damaged

NEXIQ-3 USB Link Packed Software and Application：
 - Allison (Included!)
 - Bendix 6.3.8.0 (Included!)
 - Detroit Diesel DDDL 7.05 ((Included!)
 - Detroit Diesel DDCT (Included!)
 - Detroit Diesel Calibration Tool (Included!)
 - Eaton Service Ranger 3.2 (Included!)
 - International DLB (Included!)
 - International ICAP, IPTS, NETS, IPC (Included!)
 - International Master Diagnostic (Incluided!)
 - Meritor and Wabco Diagnostics (Included!)
 - Cummins Insite 7.5 (Included!)
 - Hino 2.0.2. (Included!)
 - Caterpillar 2.0.1.0 (Included!)
 - Perkins EST 2010B (Included!)
 - V Macks 2.6.12 (Included!)
 - V Macks Dealer Pro (Included!)
 - Volvo VCADS 2.35.10 (Included!)
 - Toyota Techstream for car (Included!)

NEXIQ 3 USB Link API Support：
1.RP1210A, RP1210B
2.J2534-2
3.USB vehicle-to-PC connectivity, XTruck USB linke supports Windows xp and windows 7 32-bit and 64-bit and windows CE compliant
4.Not all applications are included. If compatibility confirmation is required, more information is needed, or there are questions about an unlisted application, please contact us, a specialist will help you make the right choice.

NEXIQ 3 Protocol Coverage：
1.CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2.2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
3.J1587/J1708 J1850 J2534
4.ISO 15765 (Diagnostic CAN)
5.ISO 14230 (KWP2000 over ISO9141) ALDL ATEC 160 (160 baud)

NEXIQ 3 Support Heavy-Duty, Light-and Medium-Duty Trucks, CONSTRUCTION EQUIPMENT like (Wheel loader, Articulated Hauler and Excavator), Genset.

FREE Heavy-Duty Truck Diagnostic Applications：
1.For VOLVO TRUCK: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12,VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

2.For VOLVO BUS: B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX,

3.For MACK TRUCKS: V-MAC I, V-MAC II, V-MAC III, V-MAC IV, Service Diagnostic

4.For VOLVO CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B,EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B,EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990

5.For Navistar: ALL Diamond Logic Builder (DLB) ServiceMaxx

6.For International: ALL Intune, MD32,

7.For Freightliner: ALLServiceLink:cascadia,century,columbia,Coronado,classic,FLDSD,4900FA, 4900SA,4900EX.

8.For HINO:ENGINE:
300SERIES, 500 SERIES, CR03_J08E, CR03_J05D, COMMONRAIL(J05E), J05D_US, J08E_US,P11C,VCS, Hibrid, Inverter, Brake(ABS), AT_45043LE

9.For ISUZU_GMC:
1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L 6HK1 Engine
Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine
For GMs: W3500, W4500, W5500, WT5500, W5500 HD,with 5.2L Diesel Engine Only,T6500,T7500, T8500

10.SCANIA VEHICLE, KOMATSU excavator, and MAN vehicle will be updated.

Nexiq 3 USB-Link works with all popular Engines including: Detroit Diesel, Caterpillar, Cummins, Perkins Engines:
1.Detroit Diesel Diagnostic Link (DDDL)
All DDEC VI equipped engines ,DD13,DD15,DD16,SERIES60,MBE4000,MBE900,and RS9, RSX9-A,RSX9-B, RSX9-R,RS10, RSX10 J1939 engine brake level for Series 2000 and 4000 Engines with USA and ISO firing order selection.

2.Caterpillar (On High Way Engine for J1939)
 3126, 3406, 3306B, 3512C, C4.4, C6.6 C7 C9 C11, C13

3.Cummins INSITE
 4d95-cm2150c/D
 6d125/6d140/6d170
 B5.9g
 C Gas plus/B Gas plus
 C8.3g/L10G
 Gas compression GTA3.9/5.9/8.3GC,
 KTA19/38GC-CM556
 ISB-CM2150D
 ISB-CM2250
 ISB-CM850
 ISB Daimler Chrysler
 ISB4.5/6.7 CM2150
 ISB5.9G-CM2180
 ISBe-CM850
 ISBe-CM2150E
 ISC-CM2150D
 ISC-CM2250
 ISC-Transit Bus ISL8.3-CM850
 ISDe-CM2150C
 ISF2.8-CM2220E
 ISF2.8-CM2220S
 ISF3.8-CM2220
 ISF3.8-CM2220S
 ISL-CM2150D
 ISL-CM2250
 ISL G-CM2180A
 ISL8.9-CM850
 ISLe4.5-CM2150E
 ISM-CM870
 ISM-CM875
 ISM-CM876
 ISM11 CM876
 ISX-CM871
 ISX11.9/15/16-CM2250
 ISX/ISZ13-CM2150
 L Gas Plus
 PIM
 QSB 6.7-CM2250
 QSB 3.3-CM2150D
 QSB4.5/5.9/6.7-CM850
 QSB5/7-CM850
 QSC8.3-CM2250
 QSC8.3/QSL9
 QSK19-CM850/CM2150
 QSK19/23/45/60/78
 QSK19G/45G/60G,QSV81/91
 QSK23-CM500
 QSK38-CM850/CM2150
 QSK50/60-CM850/CM2150
 QSL 9-CM2250
 QSL9-CM850
 QSM11-CM876
 QST30-CM552
 QST30-CM850
 QSX15
 Signature/ISX-CM870

4.Perkins Engines
 1000 (6 Cyl) / 6.354 Series
 RA - 6.247 Series
 RA - 6.247
 T - 6.354 Series
 SOS - 6.354 Standard Option Schemes
 TC - 6.354
 TD - H6.354
 TE - T6.354
 TF - HT6.354
 TG - 6.354.1
 TH - T6.354.1
 TJ - 6.354.2
 TK - C6.354.2
 TP - T6.354.3
 TR - 6.372
 TT - TC6.354.1
 TU - T6.354.4
 TV - 6.372.4
 TW - 6.354.4
 TX - C6.354.4
 TY - H6.354.4
 TZ - HT6.354.4
 Y - Phaser / 1006 Series
 YA - 6.60
 YB - T6.60
 YC - C6.60
 YD - CC6.60
 YE - T6.60CC
 YG - 6.601
 YH - T6.601
 YJ - CCA6.601
 YK - CCW6.601
 YS - Option Packs M225TI / M215C
 1100 Series
 D - 1100 Series 3 Cylinder
 DC - 1103C-33
 DD - 1103C-33T
 DF - 1103B-33
 DG - 1103B-33T
 DJ - 1103A-33
 DK -1103A-33T
 R - 1100 Series 4 Cylinder
 RE - 1104C-44
 RF - 1104C-E44
 RG - 1104C-44T
 RH - 1104C-E44T
 RJ - 1104C-44TA
 RK - 1104C-E44TA
 RR -1104A-44
 RS -1104A-44T
 RT -1104A-44TA
 V - 1100 Series 6 Cylinder
 VK - 1106-E60TA
 P - 1100D Series 6 Cylinder
 PJ - 1106D-E66TA
 PO - Option Packs 1100 Series
 N - 1100D Series 4 Cylinder ()
 NH - 1104D-E44T ()
 1300 / Peregrine Series
 W - 1300 Series
 WB - T6.466
 WC - CC6.466
 WD - T6.67
 WE - CC6.67
 WF - T6.76
 WG - CC6.76
 WH - T6.87
 WJ - CC6.87
 WK - UT6.76 HEUI
 WL - UCC6.76 HEUI
 WM - UT6.87 HEUI
 WN - UCC6.87 HEUI
 WO - 1300 Series Option Packs
 WP - UT6.761(I) HEUI
 WR - UT6.871(I) HEUI
 WS - UCC6.871(I) HEUI
 2000 / 3000 Series
 4 - 3000 Series
 S4B - 3008
 S4C - 8M700 / 800TI Condor Marine
 S4E - 3008 SI
 6 - 3000 Series
 6A - 3012
 S6A - 3012
 S6C - 3012
 S6D - 3012
 S6E - 3012 SI
 8 - 2000 Series
 8B - 2006
 8C - Eagle / 2006
 8D - Drops / 2006
 8G - 2006 SI
 S8B - 2006
 S8C - Eagle / 2006
 S8D - Drops / 2006
 S8E - 2006 SI
 S - 2000 / 3000 Series
 SAA - E300TX Euro1 Eagle
 SAC - E335TX Euro1 Eagle
 SAF - E375TX Euro1 Eagle
 SAG - E400TX Euro1 Eagle
 SAJ - E340TX Euro2
 SAK - E380TX Euro2
 SAL - E410TX Euro2
 SGA - TAG1A Elektropak / Gen Sets
 SGB - TAG2 Elektropak / Gen Sets
 SGC - TAG2A Elektropak / Gen Sets
 SGD - TAG3A Elektropak / Gen Sets
 SGE - TAG4 Elektropak / Gen Sets
 SGF - TG Elektropak / Gen Sets
 SGG - TG1A Elektropak / Gen Sets
 SGH - TG2A Elektropak / Gen Sets
 SGJ - TTAG Elektropak / Gen Sets
 SGK - TWG2 Elektropak / Gen Sets
 SGM - TAG5 Elektropak / Gen Sets
 SGN - TAG2B Elektropak / Gen Sets
 SGP - TAG1B Elektropak / Gen Sets
 SHA - 2006 TWH
 SIA - SI Combined Heat / Power
 SIB - SI Combined Heat / Power
 SIC - TSI Combined Heat / Power
 SID - TSI Combined Heat / Power
 SMA - M600TI Condor Marine
 SMB - M700TI Condor Marine
 SMC - M800TI Condor Marine
 SMO - M600/700/800 Duffield Opt Kit
 SPA - Industrial 17T
 SPB - Industrial 12T1
 SPC - Industrial 12T2
 SPD - Industrial 12TA
 SPM - Industrial 12TW
 SPN - Industrial 26TW1
 SXA - Prototype
 SXD - Prototype
 SXG ?Prototype
 SXI - Prototype
 SXM - Prototype
 SXP - Prototype
 2300 / 2800 Series
 2300 - 6 Cylinder
 FGA - 14L TAG1 Generating Sets
 FGB - 14L TAG2 Generating Sets
 FGD - 14L TAG3 Generating Sets
 2800 - 6 Cylinder
 HGA - 16L TAG1 Generating Sets
 HGB - 16L TAG2 Generating Sets
 JGA - 18L TAG1 Generating Sets
 JGB - 18L TAG2 Generating Sets
 JGD
 4000 Series
 D - 4000 Series
 DGA - TAG1 Generating Sets
 DGB - TAG2 Generating Sets
 DGD - TAG3 Generating Sets
 DGE - TAG4 Generating Sets
 DGF - TG Generating Sets
 DGK - TWG2 Generating Sets
 DGL - TAG Generating Sets
 DGM - TWG Generating Sets
 DGN - TWG3 Generating Sets
 DGP - TEG Generating Sets
 DGR - TEG2 Generating Sets
 DGS - TEG3 Generating Sets
 DGV - TWG2C Generating Sets
 DIE - TESI Combined Heat / Power
 DIF - TESI Gas Unit
 DIG - 4016E61TRS
 DME - Seaking Marine

Transmissions and Brakes
1.Meritor WABCO toolbox
 D and E Versions ,HABS, hpb, ESC, RSC, ECAS

2.Bendix ACom Diagnostics
 EC-17T, Generation 4 and 5, EC-30T, EC-60T (standard, premium and advanced),A-18T,MC-30T and the trailer antilock braking TABS-6 unit

3.Meritor ZF

4.Eaton Service Ranger
 Vorad VS-400 Collision Warning System
 Generation 2 Auto shift and Ultra shift Transmissions
 Generation 3 Auto shift and Ultra shift Transmissions
 Ultra Shift PLUS Transmissions
 Lightning Transmissions
 Hybrid Drivetrain Systems

5.Allison DOC
 Allison1000,2000,3000,4000,
 Cec2-5610,6610,8610,9610
 CEC-MTB600,CLBT-V,HT700,B700
 CEC-5,CEC-6,CEC-8,CEC9000

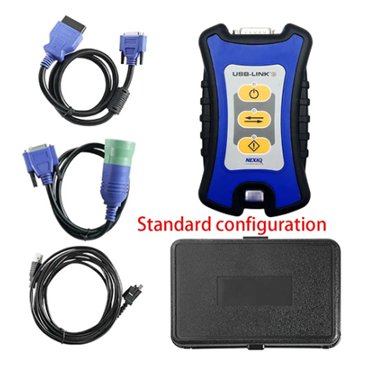

Package List (Standard configuration):
with 3 Cables
1.USB-Link 3 adapter
2.404032 USB cable
3.402048 6 and 9pin Deutsch Adapter
4.491113 OBD2 adapter
(Note：NOT including software.softeare and Driver is for nexiq 1 )

Package List (Full configuration):
with Full Set Cables
1.USB-Link 3 adapter
2.441013 OBD II Adapter
3.444009 J1962 OBD II Adapter
4.402048 6 and 9pin Deutsch Adapter
5.442022 Volvo 14-Pin Adapter
6.442020 Volvo 8-Pin Adapter
7.442021 Komatsu 12-pin Adapter
8.448015 CAT 9-Pin Adapter
9.441033 3-pin Deutsch Adapter(with male and female connector)
10.USB cable
(Note：NOT including software.softeare and Driver is for nexiq 1 )
