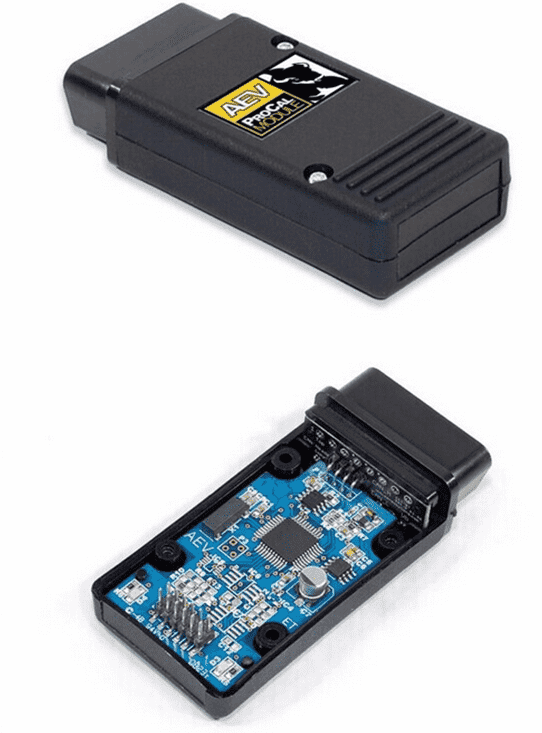

AEV ProCal Module For Jeep Wrangler & Wrangler Unlimited JK High Quality
We did test equipment as well before send it out ,thanks for visit our store
Fits These Vehicles
07-15 for Jeep Wrangler 2-Door (JK)
07-15 for Jeep Wrangler Unlimited 4-Door (JK)
Fits These Engines
for Jeep 3.6L Pentastar V6 Gasoline
for Jeep 3.8L V-6 Gasoline
for Jeep 5.7L HEMI V-8 Gasoline
for Jeep 6.1L HEMI V-8 Gasoline
for Jeep 6.4L HEMI V-8 Gasoline
Installation Notes
Install Time: Less than an hour
Installation Instructions Installation Instructions
Product Details
Users will also love the ProCal Module for the other options it provides. Their vehicle's factory Tire Pressure Monitoring System can now be recalibrated to allow for lower street pressures without triggering the annoying dash light. Further, the ProCal Module makes it possible to activate daytime running lamps, one-touch turn signal options and temporarily increase engine idle speed for winching.

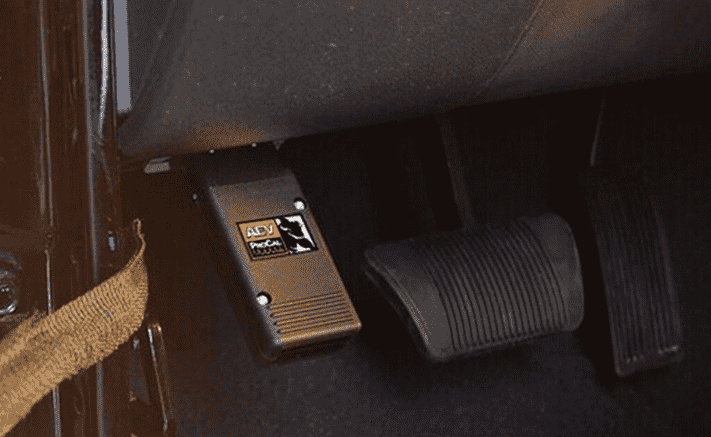

The ProCal Module is equipped with a series of easy-to-use dip switches. By reading the simple code card included with the Module, any user can quickly dial in a code for the desired recalibration. From there they simply plug the Module into their vehicle's OBD port and wait for the horn to honk. The whole process can be completed in mere minutes and it's just as easy to reverse.
Module Functions:
Large tire recalibration (Restores the vehicle's speedometer/odometer accuracy following the installation of larger-than-stock tires)
Axle gear ratio recalibration (Resets automatic transmission shift points to maximize the benefits of an axle gear ratio change)
Tire Pressure Monitoring System recalibration
Daytime running lamp activation/deactivation, and lamp location selection
One-touch turn signal activation/deactivation
Engine idle speed options (Improves winch performance and battery charging capabilities by temporarily increasing engine idle RPM)
Steering wheel centering (Provides for spot-on steering alignment)
Clears Engine Diagnostic Codes
Construction:
ROHS Compliant (Meets European Restriction-of-Hazardous-Substance standards)
Lead and Mercury Free
Meets or exceeds for Bosch CAN 2.0b specifications
100% Designed by AEV
Made in the China
Application:
Compatible with 2007 and newer for Jeep Wranglers equipped with 3.6/3.8L V6, 5.7L or 6.1/6.4L V8, 2 or 4-doors and right or left-hand-drive.
Once used for recalibration, AEV's ProCal Module stores a vehicle's VIN in its memory. While a VIN is stored in memory, a ProCal Module cannot be used on a second vehicle. To use the ProCal Module on a second vehicle, the first vehicle must be recalibrated to stock. This will clear the first VIN and ready the ProCal Module for use on the second vehicle.
Please note:
The AEV ProCal will enable axle gear ratio changes to be made to Wranglers equipped with the A580 Automatic transmission (2011+ 2.8L, 2012+ 3.6L)
The AEV ProCal cannot change axle gear ratios for 2011+ 2.8L CRD diesel Wranglers with manual transmissions.
AEV's ProCal Module now features an all-new Transfer Case Calibration function that allows customers to install a non-stock transfer case into their 2012+ JK Wrangler (w/ A580 trans) without causing the vehicle to go into limp mode. This includes 2-speed Atlas transfer cases as well as Chrysler's Command-Trac NV241 (Sport/Sahara) and Rock-Trac NV241 (Rubicon) transfer cases.This new feature is only found on the latest version of the ProCal Module (part number 30406007AG). As of 2/18, all ProCal Modules being shipped from AEV are the latest version and include this function.
Key Features:
Correct speedometer
"One touch" turn signals
Clear engine codes
Easy to use DIP switches
Recalibrate tire pressure monitor
Increase engine idle speed
Optimize ESP performance
Transfer Case calibration (2012+ JK Wrangler w/ A580 trans)

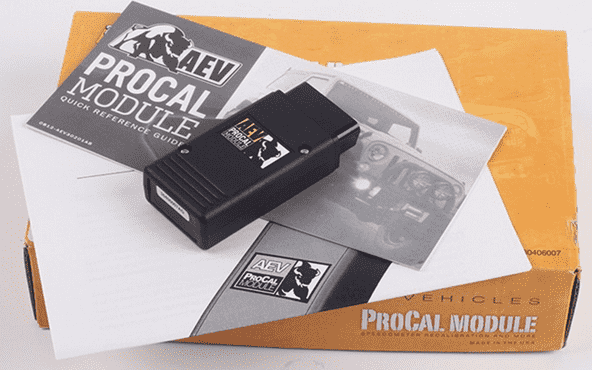

Parts Included:
ProCal Module
Quick Reference Guide
Installation Instructions
