ALL Brands Original Diagnostic Tool for Mb star C6, ICOM, JLR, VAS, HONDA HDS, TO-YOTA, PIWIS, Subaru, VO-LVO, ford, MAZDA
All original software will be installed
1. If you select the software installed the HDD/SSD , you can insert the it to your laptop then can use it
Configuration requirements and usage of PC
1.1 Computer hardware requirements: CPU i5/i7; memory: 8g.
1.2 Usage: there are 4 options after power on, which can be selected by the up and down keys, and then click enter to confirm.
2. If you select the software installed the laptop , you can use it directly when you get it
Note:
The hard drive comes with MB STAR C6 DoIP,BMW ICOM, GM Tech2Win and GM GDS2 ,Ford IDS,Mazda IDS,Toyota TIS, Honda HDS,VW ODIS,JLR SDD and Pathfinder（option),Subaru SSM3,Volvo VIDA,Porsche Piwis2, Nissan Consult 3 plus（option),PSA Diagbox（option),Renault Clip（option) Original Software.
Software version:
1.
To-yota TIS V18.00.008
For Toyota,support year 2000-2023
2.
Honda HDS HDS V3.105.12
For Honda,support year 2005-2023
3.
FORD/ MAZDA IDS V131
Ford,support year 2005-2024
(some F series models which car year is before 2010 cannot work for Ford IDS and some model need to work with FDRS
please contact seller if you are not sure the device can work for your model or not.thanks)
For Mazda support year 2005-2023
4.
MDI2 V2023.11
For mdi2,support year 2000-2023
5.
VO-LVO Vida V2014D
6.
JLR SDD and Pathfinder V164 and V374
JLR SDD,support year 2007-2017
JLRPathfinder,support year 2016-2022
7.
V-W ODIS V11
For V-W, AUDI,support year 2001-2022
8.
Star C6 V2024.09
For Mercedes Benz,support year 2005-2023
9.
ICOM V2024.03 ISTA-D ISTA
4.46.14 ISTA-P
3.71.0.200
For icom,support year 2004-2022
10.
PIWIS 2 V18.1000
For Piwis2,support year 2005-2017
11.
SUBARU SSMIII V2022.01, SSM3 V1.57.71.8, SSM4 V22.60
For Subaru,support year 2005-2022

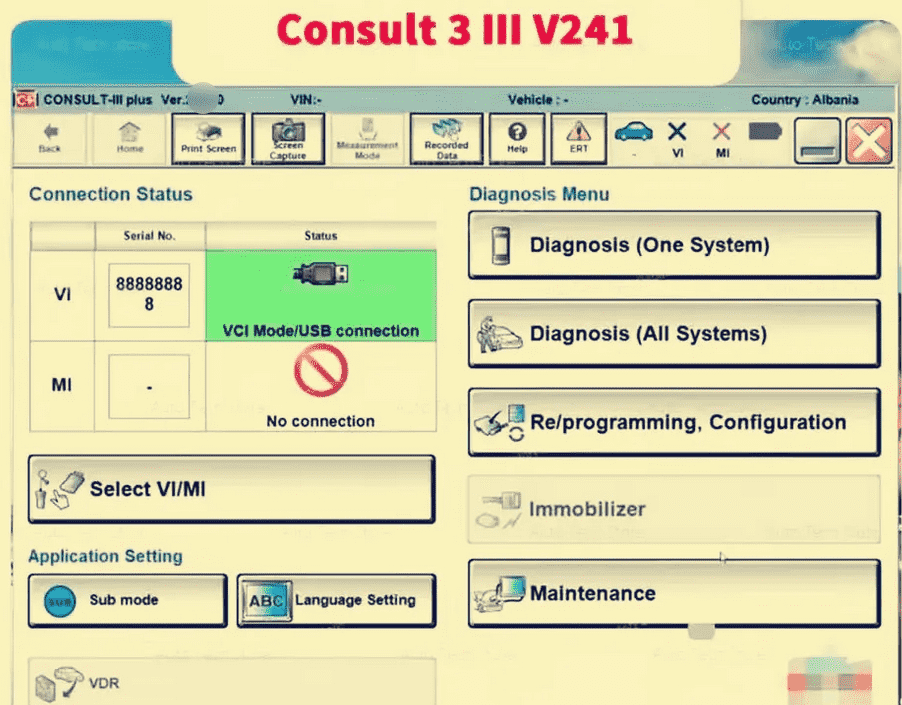

12.Nissan Consult 3 plus v226（optional)

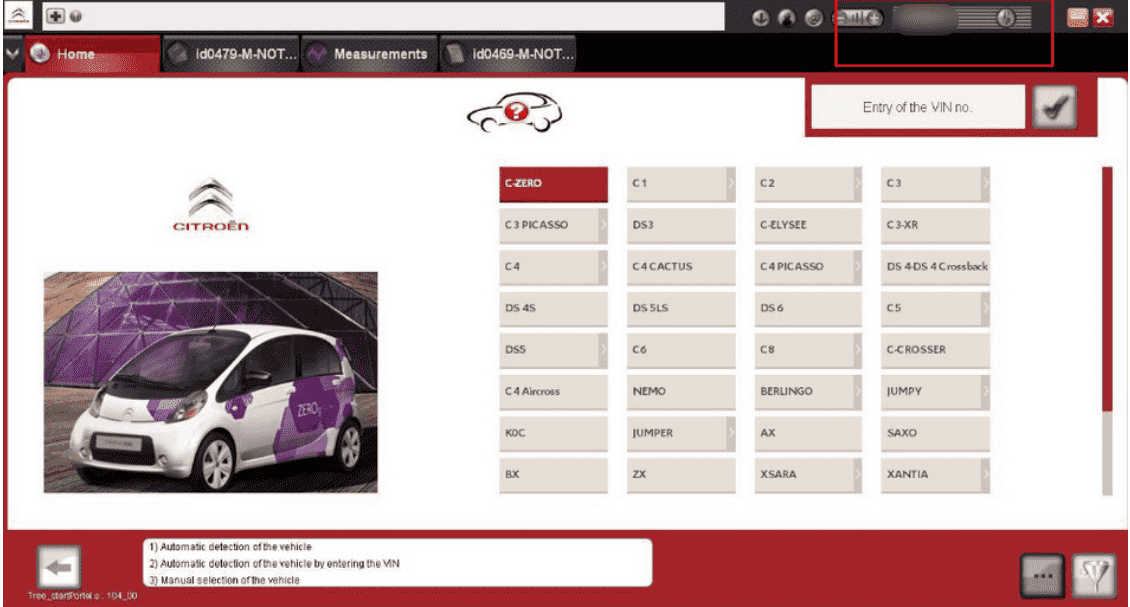

13.PSA Diagbox 9.85（optional)

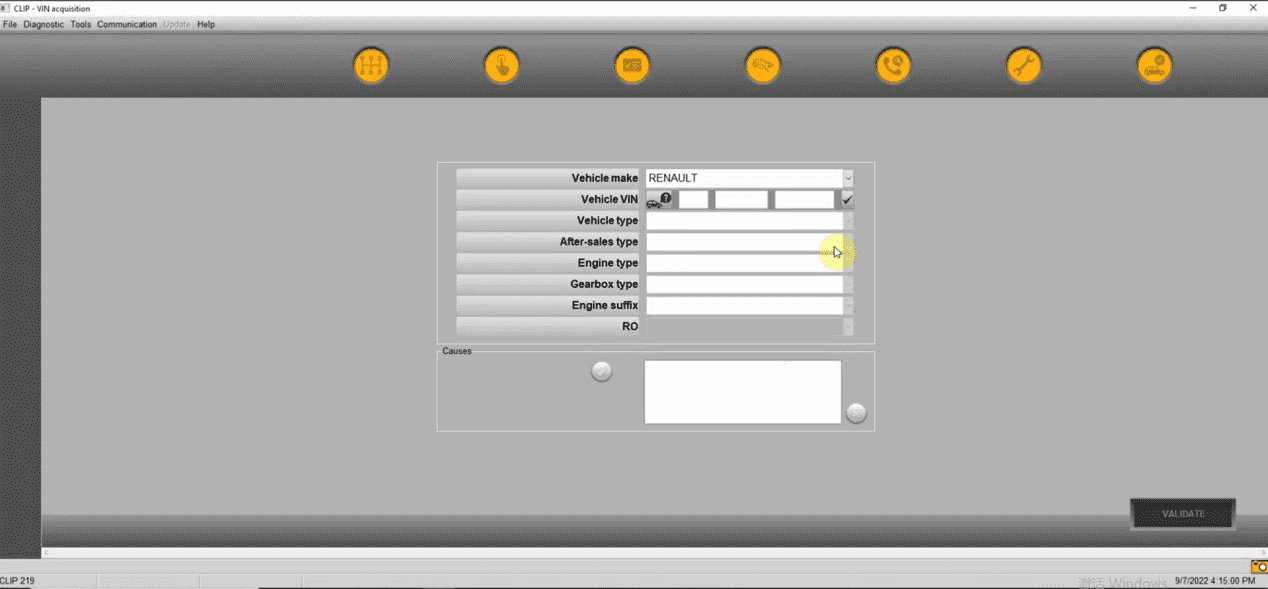

14.Renault Clip V219（optional)
15.PORSCHE PIWIS 3 V42.100（optional)

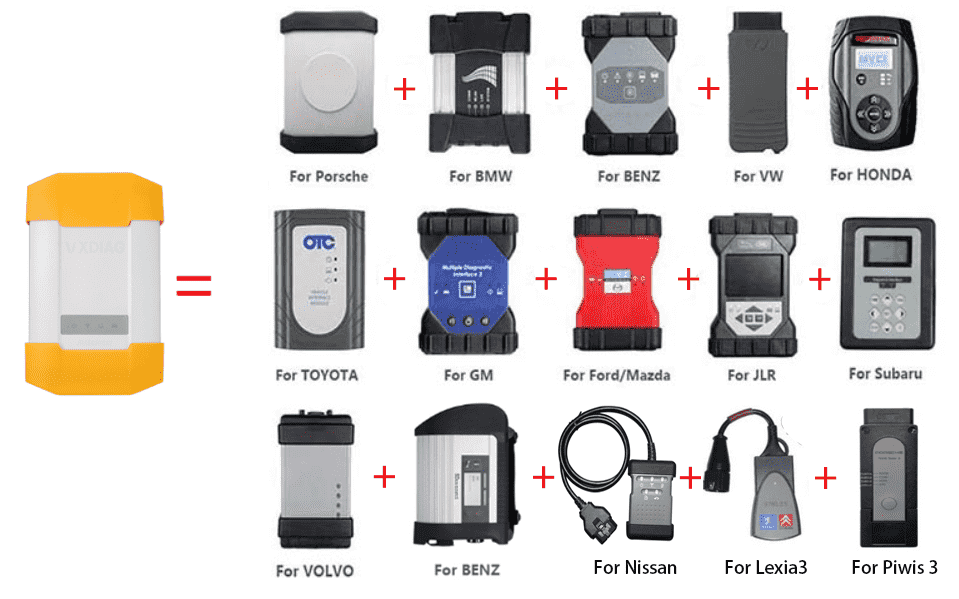

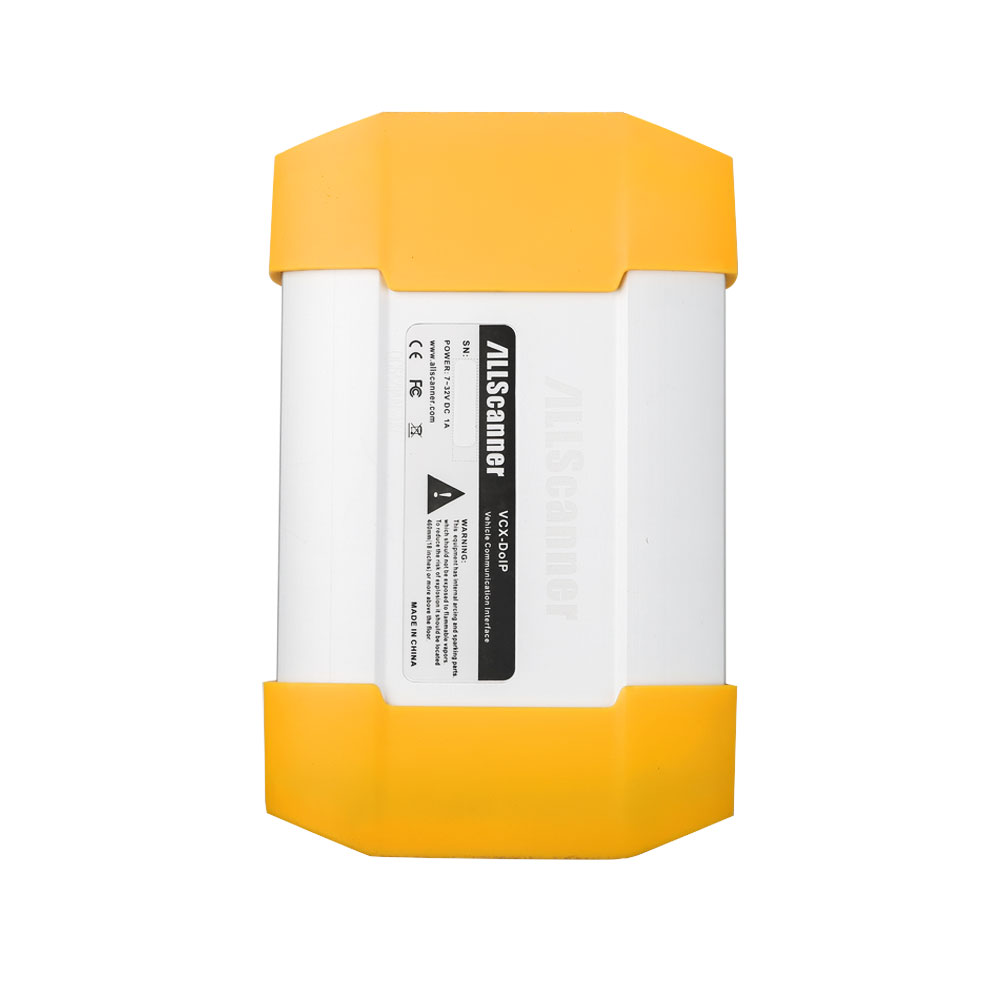

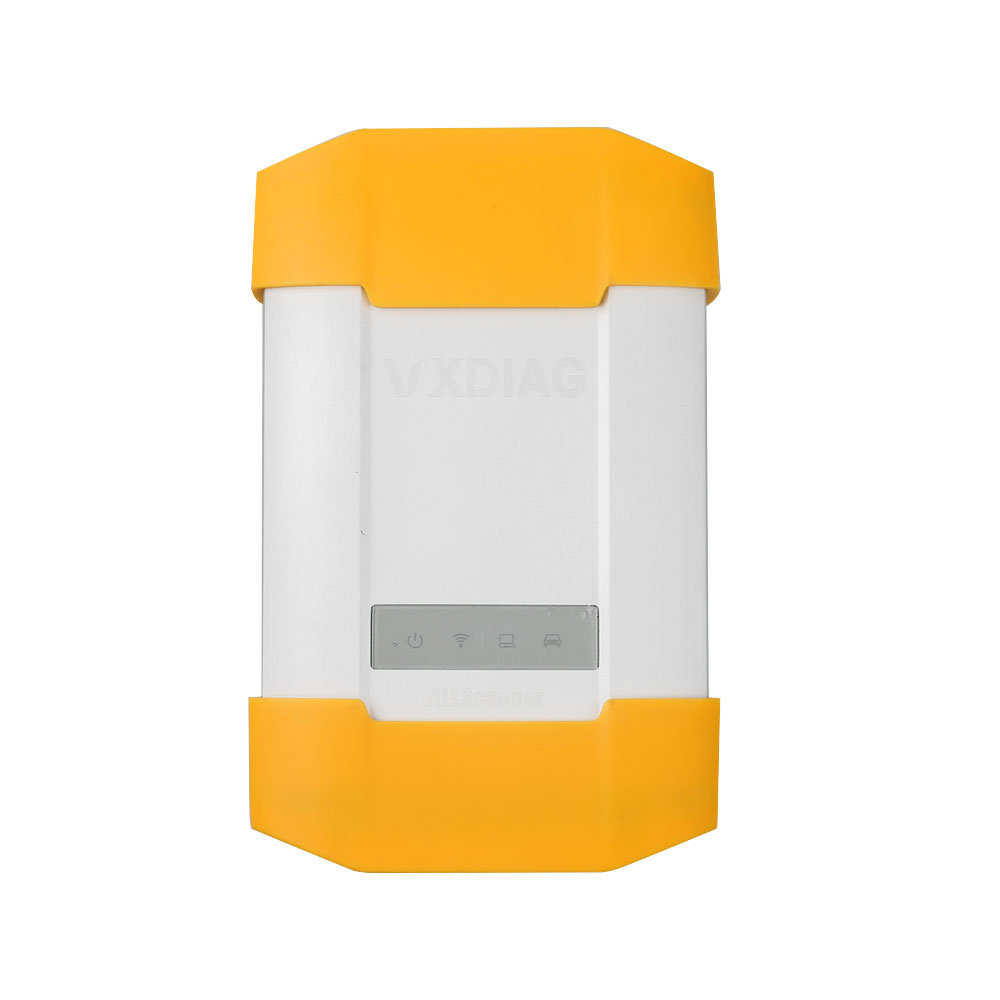

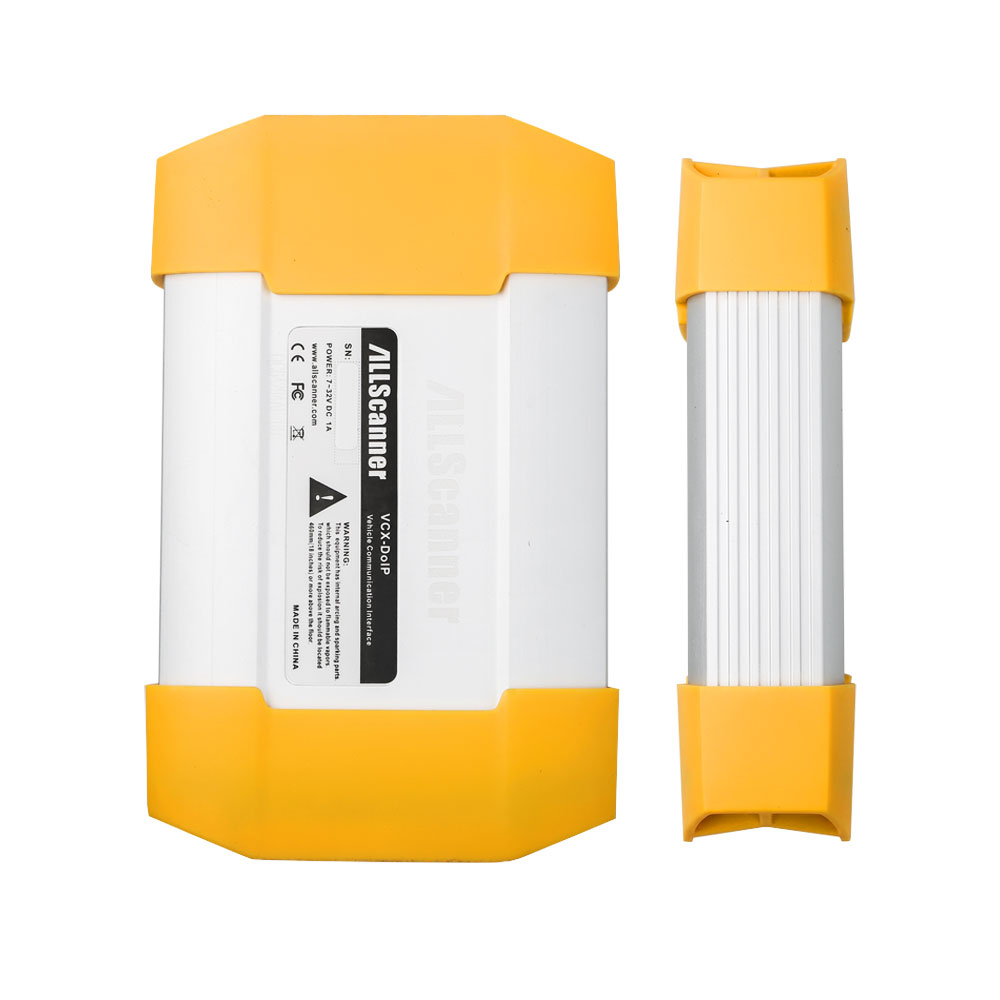

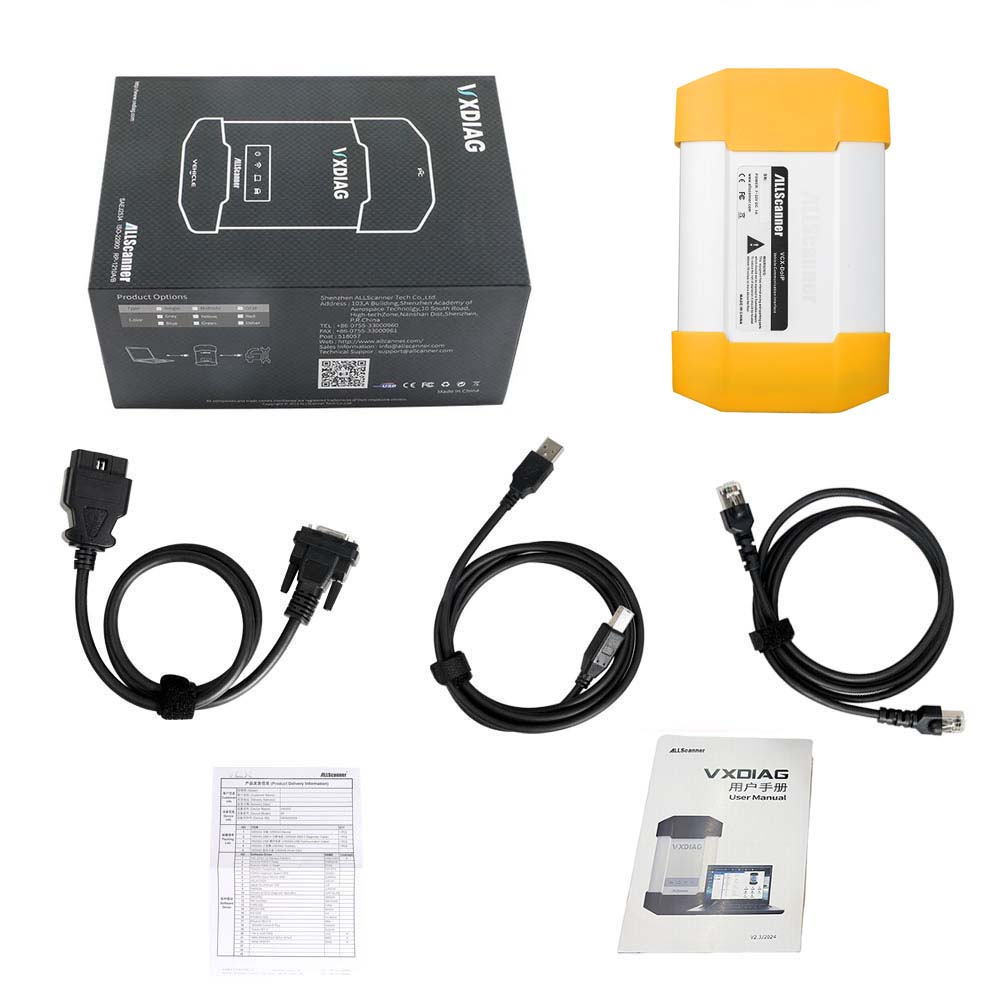

Multi in one DoIP OE diagnosis is a real DoIP original diagnosis instrument based on DOP, J2534 and more original protocols adaptation under OEMD brand. It not only supports all J2534 protocols, but also takes the lead in realizing perfect and complete DoIP adaptation in the industry, replacing the original diagnosis instrument's adaptation ability, programming ability, diagnosis and programming speed, stability and original diagnosis. The ability of the instrument has been greatly improved, taking the lead in the industry to replace C6 in an all-round way, and it is also the first comprehensive original diagnostic instrument in the industry to realize all functions of ICOM A2 and VAS6154. OD6 has really raised the multi in one and comprehensive original diagnosis instrument to a new benchmark height, which has become the only choice for J2534 and DoIP OE diagnosis tool.
Features:
It adapts to the OE diagnosis software, perfectly replaces the OE diagnosis, and realizes the OE diagnosis functions such as control unit identification, reading and deleting fault information, data flow, guided fault query, action test, programming, matching, code setting, brush hiding, changing vehicle configuration, etc.
Advantage characteristics
1.Multi in one comprehensive diagnosis instrument VCI of the original factory, one machine is multi-purpose and cost effective;
2.Comprehensive and perfect DoIP support, not only support but also more perfect adaptation;
3.Realize the functions and speeds that J2534 and other comprehensive original diagnosis instruments cannot achieve;
4.Solve the problem that non doip or other diagnostic instruments are unable to program audio gateway and instruments;
5.Solve the problem that non doip or other diagnostic instruments cannot test the new and old models;
6.The industry takes the lead in supporting and adapting 18 BMW series softwares;
7.The industry takes the lead in supporting the programming software of Toyota and Honda;
8.The
industry takes the lead in adapting and supporting Mercedes Benz
disassembly and assembly tutorials, diagnostic demonstration programs
and third-party line query software;
9.It can perfectly replace BENZ STAR C6 and many original diagnostic instruments;
10.Realize all functions of BMW ICOM A2, and realize rapid programming of vehicle control unit;
11.Realize the installation and use of win 10 of Audi ODIS series;
12.Realize all functions of VAS6154;
13.At the same time, it supports SDD and Pathfinder, and can modify the vehicle and program the control unit to read the data quickly;
14.Support all functions of tis software of the main factory, and realize the function of upgrading vehicle power system software that 4S stations at home and abroad can't do at will;
15.Support all functions of the factory's HDS software, so as to realize the function that 4S stations at home and abroad cannot upgrade the vehicle power system software at will;
16.Multi protocol is added to ensure comprehensive adaptation ability and programming function;
17.Support model expansion, such as Volvo, Ford Mazda, Porsche, Subaru, etc;
18.The actual measurement of doip programming, no gimmick, with data and facts.
Protocol support：
1.SAE-J2534-1
2.SAE-J2534-2
3.ISO-9141 K-Line
4.ISO-14230 K-Line
5.ISO-15765 K-Line/CAN
6.ISO-11898 DWCAN
7.ISO-11898 DWFTCAN
8.SAE-J1850 VPW（Class2）
9.SAE-J1850 PWM（FORD SCP）
10.SAE-J2411 Single Wire CAN
11.SAE-J2610 SCI（Chrysler）
12.SAE-J2740 ALDL
13.SAE-J2809 (HONDA DIAG-H)
14.SAE-J1939 CAN
15.SAE-J1708 On RS 485
16.VAG TP16 CAN
17.VAG TP20 CAN（SAE J2819）
18.VAG KW81（SAE J2818）
19.BMW DS2
20.FORD UBP
21.DOIP

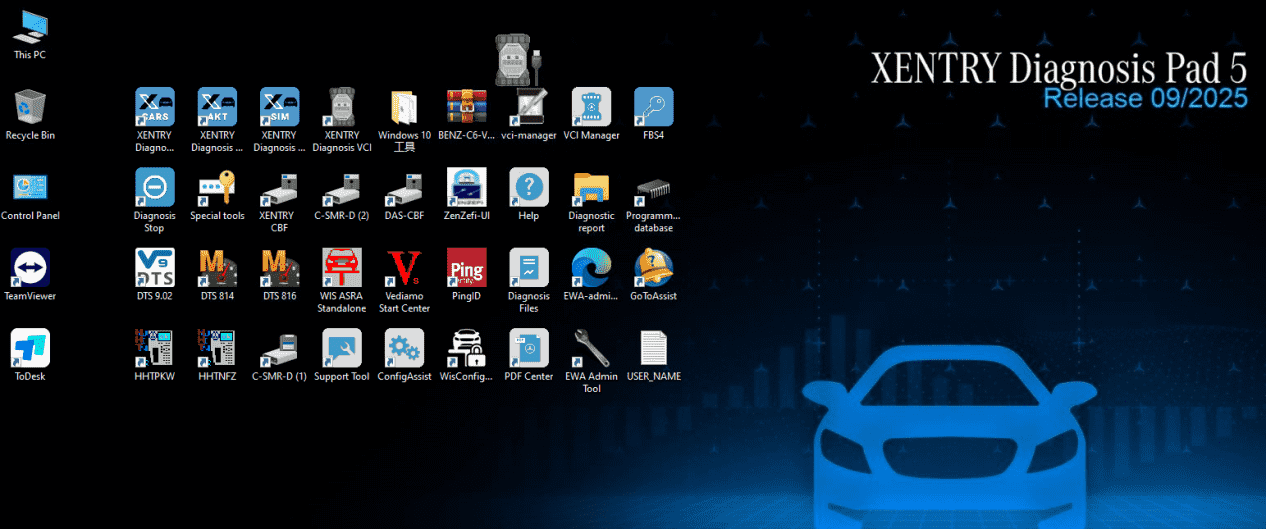

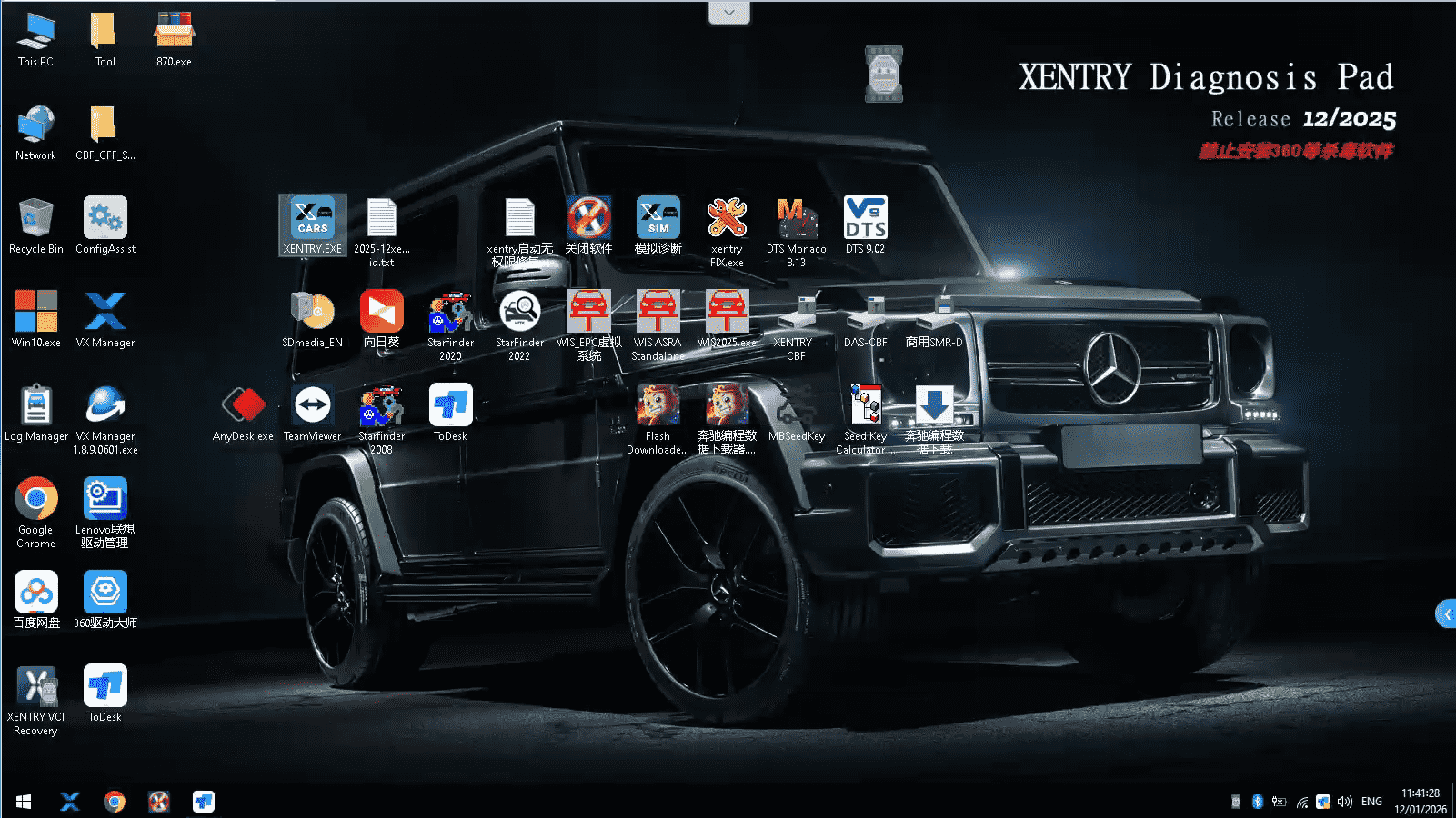

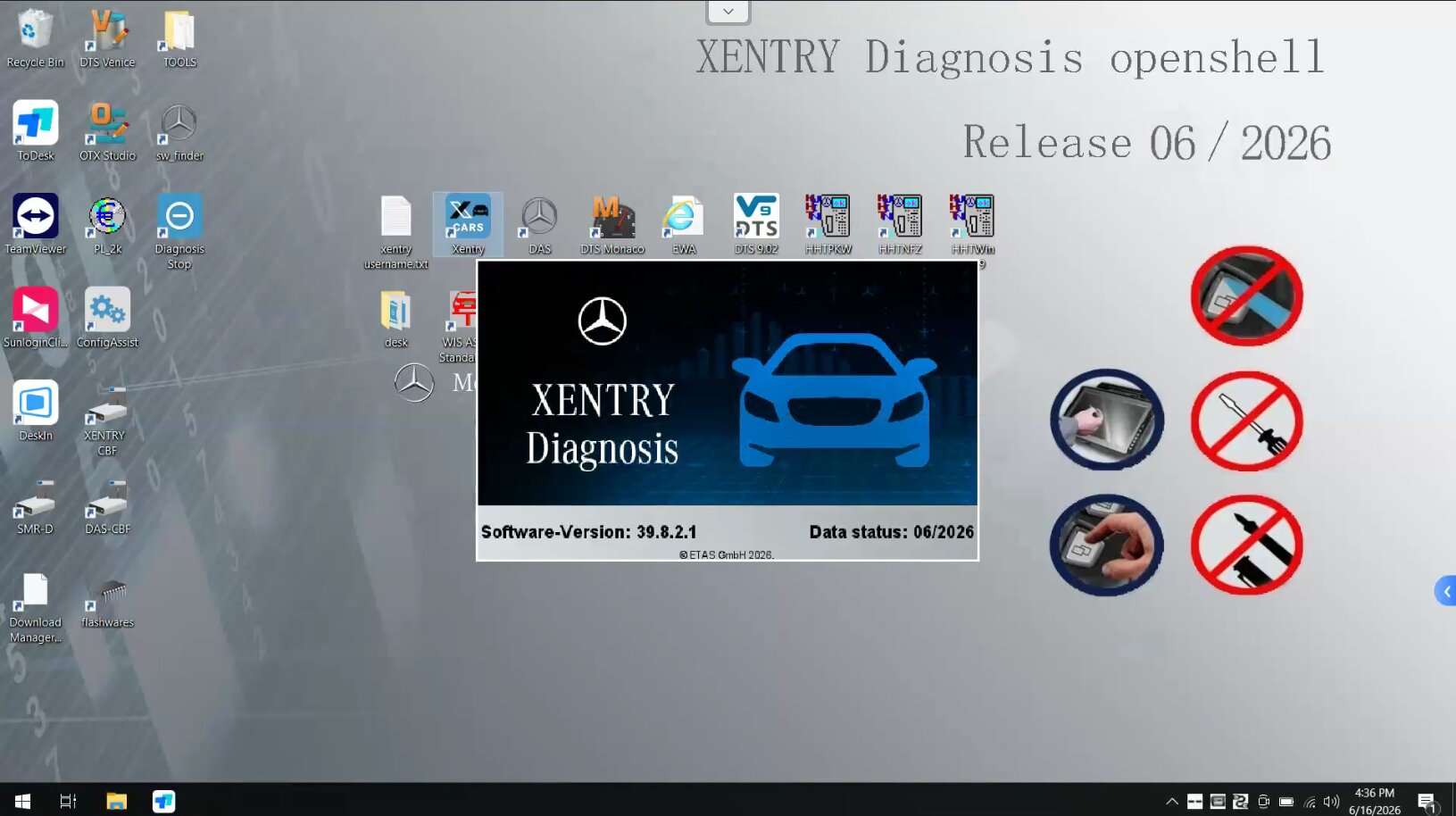

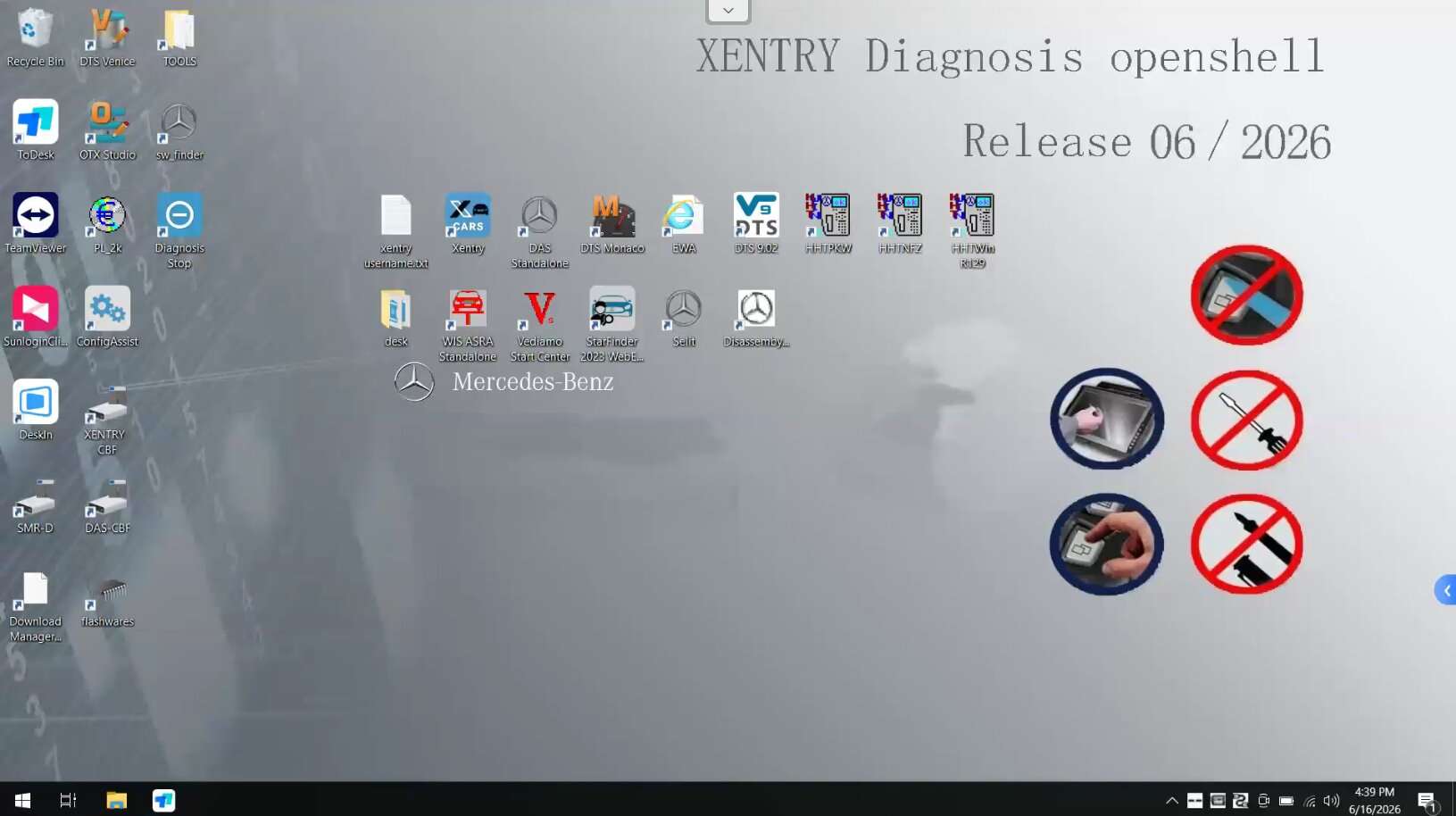

1. V2024.09 MB STAR C6 DoIP Xentry Diagnosis VCI software display：
Benz software include two versions of PASSTHRU & PDU，including DAS，Xentry software.Version of PDU support new car models of 222，213，205 etc,other car models need to usepassthru version to diagnose. Not support old models of 210，203，220 with K-Line communication. It support connections of WIFI，LAN and USB.
Product Features:
Engines (All Gasoline & Diesel Systems)
Transmissions and Electronic Selector Modules
Airmatic and Active Body Control Suspension Systems
Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
Drive Authorisation System
Sam (Signal Acquisition) Modules
Electronic Ignition System (EIS)
Pneumatic System Equipment and ATA functions
Air Conditioning / climate control Systems
Instrument Cluster
Tyre Pressure Control
Parktronic System
Keyless Go
D2b Command & Audio Gateway (D2B and MOST networks)
TV Tuner
Headlamp Range Adjustment
Seat Electronics
Rvc, RST & Vario Roof modules
Automatic Clutch System ACS
M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
Assyst & ASSYST + systems

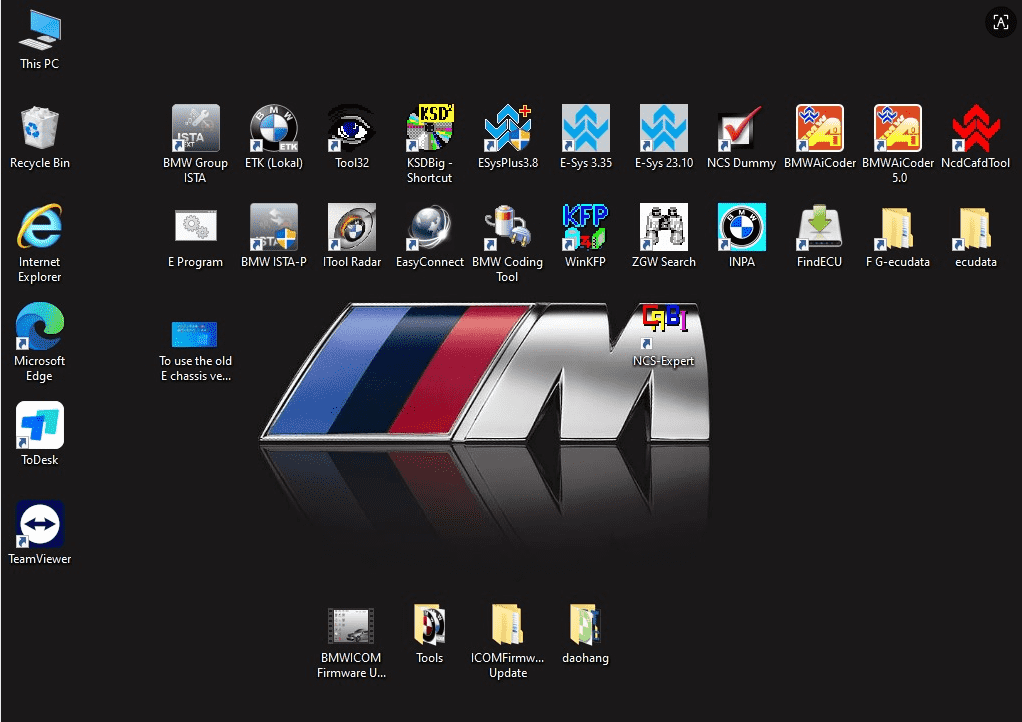

2. Software Version :
V2024.03
ISTA - D:
4.46.14 with SDP Programming Database
4.46.11
ISTA - P:
3.71.0.200 with Engineer Programming，supports the programming of BMW motorcycles and electric vehicles can program F/G/I/K chassis for car (through the ICOM, not other cable )
Vin:
V2024.03
BMW ETK: 2020.01
BMW KSD: 2019.12 Multilanguage
BMW FSC Navigation Code Generator
BMWAiCoder for BMW Coding
Win10 64 bit operating system
ICOM V2024.03, With free Software:
1. Get engineer version, INPA
5.06,winkfp
5.3.1,NCS 3.5.1, E-sys PLUS 3.81,e-sys 3.35.3,data V71.0
2. get Chinese software DR.GINI B022
3. get count code navigation tool software FSC operator code
4. get one-clik hidden brush tool BMWAi V4.6
5. Add DIS Software for Old cars, DISV57 and DISV44,diagnosis and programming for BMW virtual machines
6. Support Vehicles: For BMW Cars,For BMW Motorcycle,For Rolls-Royce, For Mini Cooper
Notice : The software installed English language in default.
ISTA-D Language: Czech, Dutch, French, German, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Sweden, Thai, Turkish
ISTA-P Language: English, Chinese, Czech, Dutch, French, German, Greek, Indonesian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
3.Toyota TIS V17.10.012 Functions and Descriptions:
1.Fully compatible with SAE J2534
2.Fully compatible with Toyota TIS Techstream
3.Supports Diagnostics, and Active tests.
4.Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics
4. Honda HDS HDS V3.102.054, i-HDS V1.004.025 Function:
Functions Supported by Honda/Acura Protocols
Reading and decoding fault codes from control blocks memory
Deleting fault codes
Displays system current parameters in digital form
Combined displaying of data
Management of executive devices
Logs keeping - writing and keeping of digital parameters in memory
Special functions - changing of permissible settings of blocks, programming etc.
5. For Ford/Mazda IDS VCM2 V131 Function:
1. Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
2. Live Data-stream with Recording & Playback Functions for Main ECUs
3. Read & Clear Diagnostic Trouble Codes (DTCs)
4. Set, Adjust or Remove Speed Governors
5. Automatic vehicle recognition
6. New Software Re-flash for Existing ECUs
7. All Other Dealer Functions
8. Steering Angle Resets
9. Guided Fault Finding
10. Program New Keys
11. DPF Regeneration
12. Brake Bleeding
13. Injector Coding

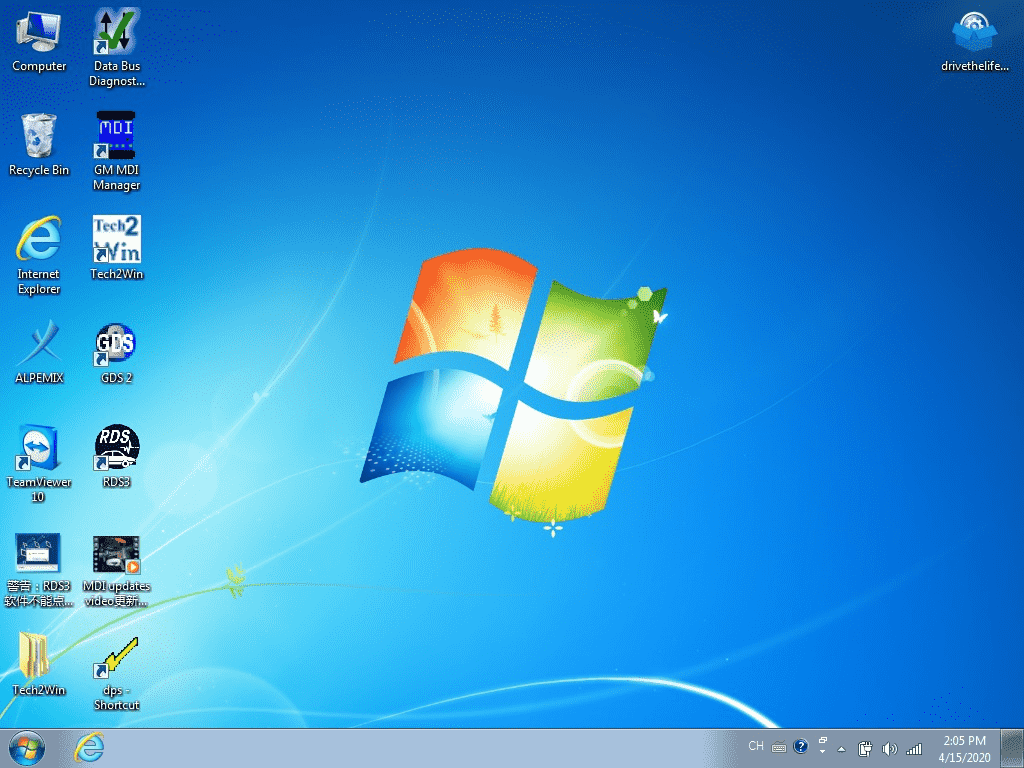

6. MDI 2 V2023.11 For GMs/OPELs FEATURES:
1.Fully compatible with SAE-J2534-1 & SAE-J2534-2
2.All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, LAN, etc.
Global Diagnostic System (GDS & GDS2)
* New Diagnostic Application Software required for all Global Architecture (Global A) Vehicles.
* GDS & GDS2 is software which runs on a specific PC. Updates received via TIS2Web.
support both GDS & GDS2. GDS 2 works similar to the original GDS. easier and faster

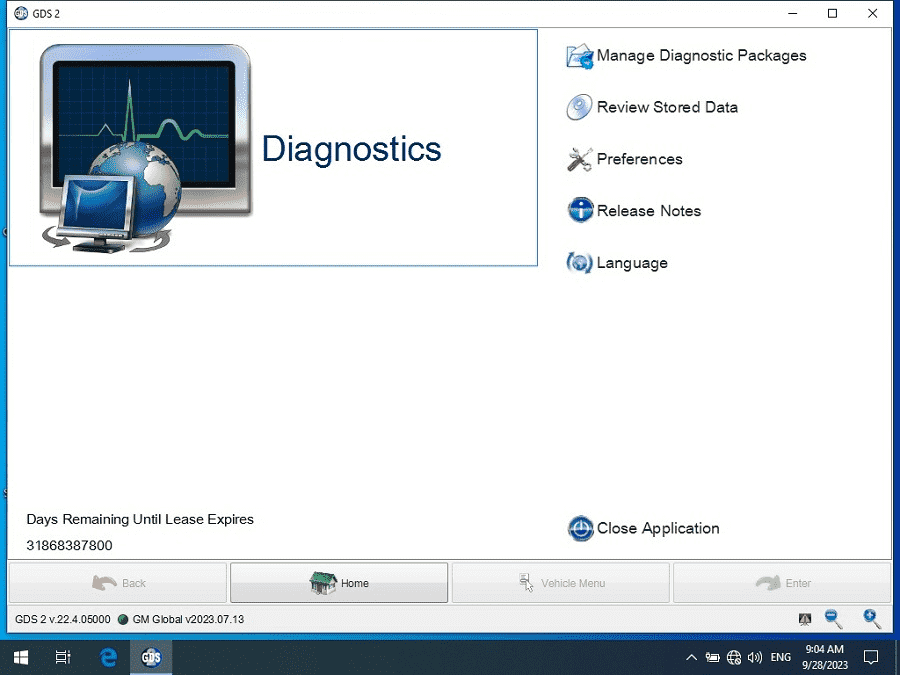

GDS 2 provides the following capabilities in multiple languages:
* Read codes, code status, Freeze Frame data and Clear Codes.
* Read VIN, ECU part numbers and software numbers.
* Record, store and replay Stored data.
* Control and monitor Output Control functions.
* Configure and Reset functions.
* Record or display history of the previous vehicle diagnostic sessions.
COMPATIBLE SOFTWARE:
* Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2
* Support TIS2WEB online Service Programming System (SPS)
* Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality
Service Programming System (SPS)(For this function, you need have online account for online programming)
* passthrough programming on past model and Global A vehicles
* Increase reprogramming speed 20-70% and get ready to service new models
For
pass-through programming of electronic control units on all vehicles
built since 1996 and future model releases. The VCX Nano Prime KIT is
between 20% and 70% faster than Tech 2.For example, on a new Tahoe
hybrid with 7 ECUS, it would normally take 2 full hours to reprogram.
But, with VCX Nano the process is completed in just 45 minutes. That’s a
64% difference and means you could service 10vehicles rather than 4in
an 8-hour day! The potential to increase revenues is dramatic.
Tech2Win Function
Tech2Win,
an application version of the Tech 2 and CANdi (Control Area Network
diagnostic interface) moduleTech2Win can be used during a vehicle road
test, offering a larger screen with all of the Tech 2 tool
functionality. The Tech2Win application offers all of the features and
functions of the Tech 2 for Opel etc. Tech2win need to install on win 7
32 bits.
7. Volvo Vida V2014D Function:
2014D
Software Language: Italiano, English, French, Portuguese, Swedish,
Japanese, Korean, Dutch, Russian, Turkish, Thai, Chinese
1) Administration - General information, design and function
2)
Standard components, service materials and consumables. General
information (among other things, control modules, SRS, general safety)
3) Service and maintenance
4) Engine with mounting and equipment
5) Electrical system
6) Power transmission
7) Brakes
8) Suspension and steering
9) Springs, shock absorbers and wheels
10) Body and interior - among other things, diagnostics, design and function, repair and spare part information
11) Other - special vehicles, e.g., ambulances, police cars. Components that deviate from standard.
8. For LAND ROVER Jaguar SDD and Pathfinder Software V164 and V374 Feature:
The Pathfinder software
It
is the only unit that will be compatible with the Pathfinder software
and all JLR vehicles with the new vehicle architectures found in 2018
and newer vehicles (from the Range Rover/Range Rover Sport L405/L494).
In addition to the 2018 and newer vehicles, the DoIP VCI will also be
capable of interfacing with 2014 through 2020 Multi-CAN architecture
vehicles (see application list below).
The SDD software
All 2014-2022 with no DOIP and earlier (2006 to 2022) land rover and Jaguar will still use the SDD JLR software.
The NEW JLR DoIP VCI is the newest interface for Jaguar and Land Rover vehicles.
It is the only unit that will be compatible with the Pathfinder Software and all JLR vehicles with the new vehicle architectures found in 2017 and newer vehicles (from the Range Rover/Range Rover Sport L405/L494). In addition to the 2022 and newer vehicles.
The DoIP VCI will also be capable of interfacing with 2014 through 2022 Multi-CAN architecture vehicles (see application list below). Vehicles 2014 and older vehicles not detailed here will continue to use the current diagnostic system and VCIs.
DoIP VCI Applications:
· XE (X760)
· F-Pace (X761)
· F-Type (X152)
· XF (X260)
· XJ (X351) – 16MY only
· Evoque (L538)
· Discovery Sport (L550)
· Range Rover (L405)
· Range Rover Sport (L494)
9. For V-W ODIS V17.01 for V-W Audi Skoda
Support the newest ODIS software and UDS protocol.
Support Volkswagen, Audi, Skoda, Bentley, Lamborghini
10. Piwis Tester II V18.1000 Functions and Descriptions:
1. Read/clear error code, catch data stream, computer programming match, component test, maintenance information consult, components site drawing, wiring diagram.
2. Porsche Piws2 II works with the old and latest Porsche cars. It is equipped with the Lenovo or Dell laptop and
original software for the test.
Porsche Piws2 II can help you diagnose and program all new and old kind of Porsche cars. For example: 911(997)(991)，Boxster/Cayman, (987),
Cayenne up to MY 2010, Cayenne from MY 2011 and Panamera.
3. New Panamera can only be diagnosed by using Porsche Piws2.
4. Able to work with both old and new Porsche cars up to MY 2013.
Piws2 II Support Systems:
Engine,
automatic transmission, air-conditioning, SRS, ABS, ASR, MPL, antitheft System, Keyless GO system, OBDII system.
Piws2 Vehicle Coverage:
1. 911(997) (991)
2. Boxster/Cayman (987)
3. Cayenne up to MY 2010
4. Cayenne from MY 2011
5. Panamera
6. Support Porsche Cars Till 2017
11. SUBARU V2022.01 Software Function:
SSM3 software version V2022.1, support vehicle from 2005 to 2022 year. SSM4 software version V22.60, support vehicle 2016 onwards.
1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSMΙΙΙ diagnosis is supported, and memorized diagnostic codes.
2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSMΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.
4. Immobilizer. This item performs immobilizer registration.
5. Reprogram. This item performs reprogramming of the control module.
6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.
8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.
Package List:
1pc x VXDIAG VCX-PLUS Machine
1pc x OBDII Cable
1pc x USB Cable
1pc x 2TB HDD （Optional）2TB SSD （Optional）
1pc x Second Hand Lenovo T450 Laptop（Optional）
Second Hand Laptop Lenovo T450 Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB
Hard Disk：2000G HDD or 2000G SSD
